S: Customized travel length

Order example: HP-XYZ114-70-100 means base flange ICF114 travel flange ICF70 with 100mm Z travel

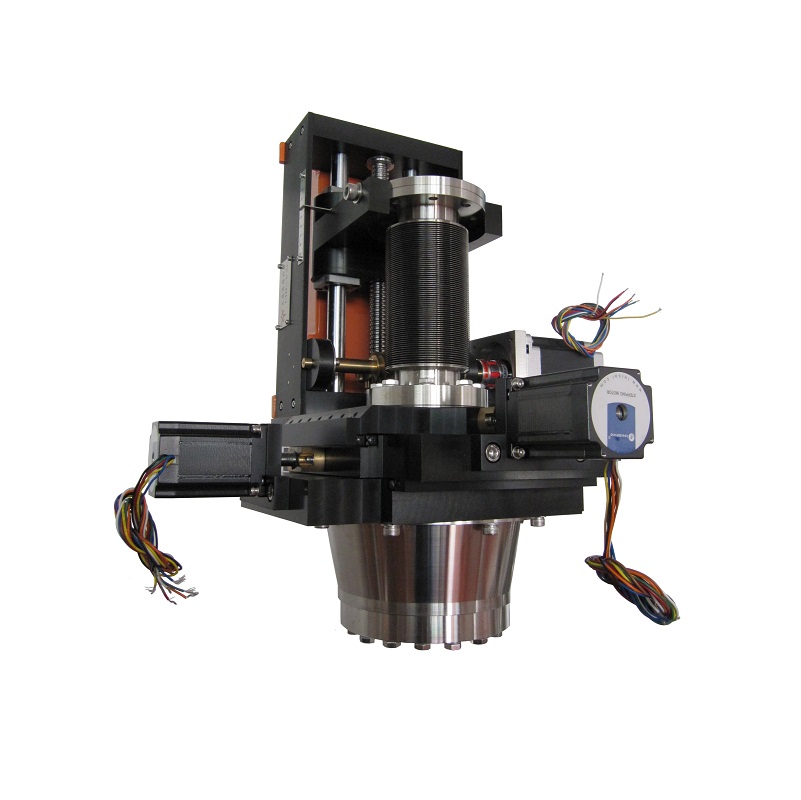

XYZ three-dimensional movement in UHV

Double bellows translator with large probe capacity

XY table is separated from Z-only translator

Large clear bore, suitable for high power cryostats and custom-designed sample holders

Unique guided support tube to eliminate deflection due to vacuum loading and for extreme stability

Free installation direction

Baking temperature: >200℃

Motor control optio
